NUM::NoiseGenerator_Perlin< T > Class Template Reference

Ken Perlin's famous noise function. More...

#include <perlin.h>

Inheritance diagram for NUM::NoiseGenerator_Perlin< T >:

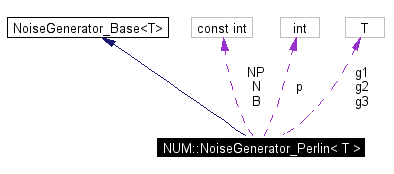

[legend]Collaboration diagram for NUM::NoiseGenerator_Perlin< T >:

[legend]List of all members.

Public Member Functions
	NoiseGenerator_Perlin (int seed=-1)
	Create Perlin noise generator; use specified seed if >=0.
	~NoiseGenerator_Perlin ()
T	noise1 (T) const
	Calculate one dimensional noise; see base class.
T	noise2 (const T *) const
	Calculate two dimensional noise; see base class.
T	noise3 (const T *) const
	Calculate three dimensional noise; see base class.
Static Public Attributes
const int	B = 0x100
	MUST be a power of 2.
const int	NP = 12
const int	N = 1<<NP
	N=2^NP.
Private Member Functions
void	_init ()
	initialize the frequency tables
	NoiseGenerator_Perlin (const NoiseGenerator_Perlin &)
	Do not use:.
void	operator= (const NoiseGenerator_Perlin &)
	Do not use:.
Private Attributes
int	p [B+B+2]
T	g1 [B+B+2]
T	g2 [B+B+2][2]
T	g3 [B+B+2][3]

---

Detailed Description

template<typename T>
class NUM::NoiseGenerator_Perlin< T >

Ken Perlin's famous noise function.

Author:

Klaus Sausen (nicolasius@users.sourceforge.net), Wolfgang Wieser ] wwieser (a) gmx <*> de [

Classified and templatized.
Use dbl or flt as template parameter.

This class is not "C++-safe".

Definition at line 48 of file perlin.h.

---

Constructor & Destructor Documentation

template<typename T> NUM::NoiseGenerator_Perlin< T >::NoiseGenerator_Perlin (  const NoiseGenerator_Perlin< T > &   )  [private]

Do not use:.

template<typename T> NUM::NoiseGenerator_Perlin< T >::NoiseGenerator_Perlin (  int  seed = -1  )  [inline]

Create Perlin noise generator; use specified seed if >=0. Definition at line 71 of file perlin.h. References NUM::NoiseGenerator_Perlin< T >::_init().

template<typename T> NUM::NoiseGenerator_Perlin< T >::~NoiseGenerator_Perlin (   )  [inline]

Definition at line 74 of file perlin.h.

---

Member Function Documentation

template<typename T> void NUM::NoiseGenerator_Perlin< T >::_init (   )  [private]

initialize the frequency tables Definition at line 27 of file perlin.cc. References NUM::NoiseGenerator_Perlin< T >::B, NUM::NoiseGenerator_Perlin< T >::g1, NUM::NoiseGenerator_Perlin< T >::g2, NUM::NoiseGenerator_Perlin< T >::g3, NUM::NoiseGenerator_Perlin< T >::p, and NUM::sqr(). Referenced by NUM::NoiseGenerator_Perlin< T >::NoiseGenerator_Perlin().

template<typename T> T NUM::NoiseGenerator_Perlin< T >::noise1 (  T   )  const [virtual]

Calculate one dimensional noise; see base class. Reimplemented from NUM::NoiseGenerator_Base< T >. Definition at line 91 of file perlin.cc. References NUM::NoiseGenerator_Perlin< T >::g1, NUM::lerp(), NUM::NoiseGenerator_Perlin< T >::p, s_curve, and setup. Referenced by NUM::_NoiseGenerator_PerlinInstantiationDummy().

template<typename T> T NUM::NoiseGenerator_Perlin< T >::noise2 (  const T *   )  const [virtual]

Calculate two dimensional noise; see base class. Reimplemented from NUM::NoiseGenerator_Base< T >. Definition at line 109 of file perlin.cc. References at2, NUM::NoiseGenerator_Perlin< T >::B, NUM::NoiseGenerator_Perlin< T >::g2, NUM::lerp(), NUM::NoiseGenerator_Perlin< T >::N, NUM::NoiseGenerator_Perlin< T >::p, and s_curve. Referenced by NUM::_NoiseGenerator_PerlinInstantiationDummy().

template<typename T> T NUM::NoiseGenerator_Perlin< T >::noise3 (  const T *   )  const [virtual]

Calculate three dimensional noise; see base class. Reimplemented from NUM::NoiseGenerator_Base< T >. Definition at line 157 of file perlin.cc. References at3, NUM::NoiseGenerator_Perlin< T >::B, NUM::NoiseGenerator_Perlin< T >::g3, NUM::lerp(), NUM::NoiseGenerator_Perlin< T >::N, NUM::NoiseGenerator_Perlin< T >::p, and s_curve. Referenced by NUM::_NoiseGenerator_PerlinInstantiationDummy().

template<typename T> void NUM::NoiseGenerator_Perlin< T >::operator= (  const NoiseGenerator_Perlin< T > &   )  [private]

Do not use:.

---

Member Data Documentation

template<typename T> const int NUM::NoiseGenerator_Perlin< T >::B = 0x100 [static]

MUST be a power of 2. Definition at line 51 of file perlin.h. Referenced by NUM::NoiseGenerator_Perlin< T >::_init(), NUM::NoiseGenerator_Perlin< T >::noise2(), and NUM::NoiseGenerator_Perlin< T >::noise3().

template<typename T> T NUM::NoiseGenerator_Perlin< T >::g1[B + B + 2] [private]

Definition at line 58 of file perlin.h. Referenced by NUM::NoiseGenerator_Perlin< T >::_init(), and NUM::NoiseGenerator_Perlin< T >::noise1().

template<typename T> T NUM::NoiseGenerator_Perlin< T >::g2[B + B + 2][2] [private]

Definition at line 59 of file perlin.h. Referenced by NUM::NoiseGenerator_Perlin< T >::_init(), and NUM::NoiseGenerator_Perlin< T >::noise2().

template<typename T> T NUM::NoiseGenerator_Perlin< T >::g3[B + B + 2][3] [private]

Definition at line 60 of file perlin.h. Referenced by NUM::NoiseGenerator_Perlin< T >::_init(), and NUM::NoiseGenerator_Perlin< T >::noise3().

template<typename T> const int NUM::NoiseGenerator_Perlin< T >::N = 1<<NP [static]

N=2^NP. Definition at line 53 of file perlin.h. Referenced by NUM::NoiseGenerator_Perlin< T >::noise2(), and NUM::NoiseGenerator_Perlin< T >::noise3().

template<typename T> const int NUM::NoiseGenerator_Perlin< T >::NP = 12 [static]

Definition at line 52 of file perlin.h.

template<typename T> int NUM::NoiseGenerator_Perlin< T >::p[B + B + 2] [private]

Definition at line 56 of file perlin.h. Referenced by NUM::NoiseGenerator_Perlin< T >::_init(), NUM::NoiseGenerator_Perlin< T >::noise1(), NUM::NoiseGenerator_Perlin< T >::noise2(), and NUM::NoiseGenerator_Perlin< T >::noise3().

---

The documentation for this class was generated from the following files:

• /ray/src/lib/numerics/noise/perlin.h
• /ray/src/lib/numerics/noise/perlin.cc

---
