PixmapFormat Class Reference

This class describes a pixmap format. More...

#include <format.h>

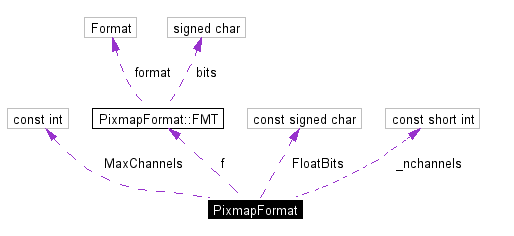

Collaboration diagram for PixmapFormat:

[legend]List of all members.

Public Types
enum	Format {   None = 0, Gray, GrayA, RGB,   RGBA, RGBFT, _LASTF }
	General image formats. These just represent what type of data is present in the channels. More...
enum	CommonID {   Gray_1, Gray_8, Gray_16, GrayA_8,   GrayA_16, RGB_8, RGB_16, RGBA_8,   RGBA_16, RGB_555, RGB_565, RGBFT_f,   _LASTID }
	Commonly used formats for convenience:. More...
Public Member Functions
	PixmapFormat (CommonID cid)
	Construct a commonly used pixmap format:.
	PixmapFormat (Format id, const signed char *bits)
	PixmapFormat (const PixmapFormat &pf)
	Copy constructor:.
	~PixmapFormat ()
void	set (CommonID cid)
	Assign a format; this works like the constructors above.
void	set (Format id, const signed char *bits)
PixmapFormat &	operator= (CommonID cid)
PixmapFormat &	operator= (const PixmapFormat &pf)
Format	format () const
short int	nchannels () const
signed char	bits (short int c) const
	No range check on the channel index c=0..nchannels()-1.
signed char	SameBitsForAll () const
bool	operator== (const PixmapFormat &pf) const
	Compare two pixmap formats if they match exactly.
bool	operator!= (const PixmapFormat &pf) const
bool	operator== (Format fmt) const
	Compare format (identifier), not bit depths:.
bool	operator!= (Format fmt) const
Static Public Attributes
const int	MaxChannels = 6
const signed char	FloatBits = -1
	Special value for the bits[]:.
const short int	_nchannels [_LASTF]
	Returns the number of channels when indexed with a format:.
Private Member Functions
void	_set (CommonID cid)
void	_set (Format fmt, const signed char *bits)
Private Attributes
FMT	f
	See above; this stores the actual format information.

---

Detailed Description

This class describes a pixmap format.

The pixmap format is specified by the number of channels and the number of bits in each channel. There are a number of constructors for connonly used values.

See also:

File format.h for more information.

Author:

Wolfgang Wieser ] wwieser (a) gmx <*> de [

Definition at line 59 of file format.h.

---

Member Enumeration Documentation

enum PixmapFormat::CommonID

Commonly used formats for convenience:. These are just shortcuts for commonly used formats. Enumeration values: Gray_1  1 bit black/white bitmap Gray_8  8 bit grayscale Gray_16  16 bit grayscale GrayA_8  8 bit grayscale with 8 bit alpha channel GrayA_16  16 bit grayscale with 16 bit alpha channel RGB_8  RGB, 8 bit per channel. RGB_16  RGB, 16 bit per channel. RGBA_8  RGB+alpha, 8 bit per channel. RGBA_16  RGB+alpha, 16 bit per channel. RGB_555  RGB, 5 bit per channel. RGB_565  RGB, 5 bit for red,blue and 6 bit for green. RGBFT_f  RGBFT, flt values. _LASTID  (internal use; must be last) Definition at line 89 of file format.h.

enum PixmapFormat::Format

General image formats. These just represent what type of data is present in the channels. Enumeration values: None  (no format) Gray  grayscale; 1 channel GrayA  grayscale [0] with alpha [1]; 2 channels RGB  red [0], green [1], blue [2]; 3 channels RGBA  red [0], green [1], blue [2], alpha [3]; 4 channels RGBFT  RGB + filter [3], transmit [4]; 5 channels. _LASTF  (internal use; must be last) Definition at line 70 of file format.h. Referenced by format().

---

Constructor & Destructor Documentation

PixmapFormat::PixmapFormat (  CommonID  cid  )  [inline]

Construct a commonly used pixmap format:. Definition at line 139 of file format.h. References _set().

PixmapFormat::PixmapFormat (  Format  id, const signed char *  bits )  [inline]

Construct a pixmap format by specifying a format (e.g. RGB) and the number of bits in each channel. Use FloatBits for flt representation. bits[] is an array with one entry for each channel; the number of channels is known from the format. For example, for format RGBA, there are 4 channels and their width in bits is specified in the order R-G-B-A (as suggested by the format "mnemonic"). Definition at line 148 of file format.h. References _set().

PixmapFormat::PixmapFormat (  const PixmapFormat &  pf  )  [inline]

Copy constructor:. Definition at line 151 of file format.h. References f.

PixmapFormat::~PixmapFormat (   )  [inline]

Definition at line 152 of file format.h.

---

Member Function Documentation

void PixmapFormat::_set (  Format  fmt, const signed char *  bits )  [private]

Definition at line 82 of file format.cc. References _LASTF, _nchannels, Assert, PixmapFormat::FMT::bits, f, and PixmapFormat::FMT::format.

void PixmapFormat::_set (  CommonID  cid  )  [private]

For internal use only. Internally used: Definition at line 75 of file format.cc. References _LASTID, Assert, commons, and f. Referenced by operator=(), PixmapFormat(), and set().

signed char PixmapFormat::bits (  short int  c  )  const [inline]

No range check on the channel index c=0..nchannels()-1. Definition at line 168 of file format.h. References PixmapFormat::FMT::bits, and f. Referenced by PixmapImageTile::_SetPixelFuncs(), operator==(), and SameBitsForAll().

Format PixmapFormat::format (   )  const [inline]

Query format, number of channels and bits per channel (FloatBits for flt): Definition at line 165 of file format.h. References f, PixmapFormat::FMT::format, and Format.

short int PixmapFormat::nchannels (   )  const [inline]

Definition at line 166 of file format.h. References _nchannels, f, and PixmapFormat::FMT::format. Referenced by PixmapImageTile::_SetPixelFuncs(), operator==(), and SameBitsForAll().

bool PixmapFormat::operator!= (  Format  fmt  )  const [inline]

Definition at line 184 of file format.h. References f, and PixmapFormat::FMT::format.

bool PixmapFormat::operator!= (  const PixmapFormat &  pf  )  const [inline]

Definition at line 179 of file format.h. References operator==().

PixmapFormat& PixmapFormat::operator= (  const PixmapFormat &  pf  )  [inline]

Definition at line 160 of file format.h. References f.

PixmapFormat& PixmapFormat::operator= (  CommonID  cid  )  [inline]

Definition at line 158 of file format.h. References _set().

bool PixmapFormat::operator== (  Format  fmt  )  const [inline]

Compare format (identifier), not bit depths:. Definition at line 183 of file format.h. References f, and PixmapFormat::FMT::format.

bool PixmapFormat::operator== (  const PixmapFormat &  pf  )  const

Compare two pixmap formats if they match exactly. Definition at line 91 of file format.cc. References bits(), f, PixmapFormat::FMT::format, and nchannels(). Referenced by operator!=().

signed char PixmapFormat::SameBitsForAll (   )  const

Check if all channels have equal number of bits and return the number of bits in that case. If the number of channels is 0 (format None) or the channels have different number of bits, 0 is returned. Definition at line 64 of file format.cc. References bits(), and nchannels(). Referenced by PixmapImageTile::_SetPixelFuncs().

void PixmapFormat::set (  Format  id, const signed char *  bits )  [inline]

Definition at line 156 of file format.h. References _set().

void PixmapFormat::set (  CommonID  cid  )  [inline]

Assign a format; this works like the constructors above. Definition at line 155 of file format.h. References _set().

---

Member Data Documentation

const short int PixmapFormat::_nchannels [static]

Initial value: { 0, 1, 2, 3, 4, 5, } Returns the number of channels when indexed with a format:. Definition at line 53 of file format.cc. Referenced by _set(), and nchannels().

FMT PixmapFormat::f [private]

See above; this stores the actual format information. Definition at line 132 of file format.h. Referenced by _set(), bits(), format(), nchannels(), operator!=(), operator=(), operator==(), and PixmapFormat().

const signed char PixmapFormat::FloatBits = -1 [static]

Special value for the bits[]:. Definition at line 112 of file format.h.

const int PixmapFormat::MaxChannels = 6 [static]

Definition at line 63 of file format.h.

---

The documentation for this class was generated from the following files:

• /ray/src/lib/pixmap/format.h
• /ray/src/lib/pixmap/format.cc

---
