StringTreeDump Class Reference

Expandable, indent-capable, (alloc-ahead) string buffer for tree node dump. More...

#include <strtreedump.h>

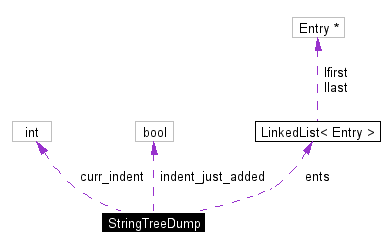

Collaboration diagram for StringTreeDump:

[legend]List of all members.

Public Member Functions
	StringTreeDump ()
	Create empty string tree dump.
	~StringTreeDump ()
	Destroy thereby freeing data.
void	AddIndent (int n=1)
	Change indent: Increase it by passed amount.
void	SubIndent (int n=1)
	Change indent: Decrease it by passed amount.
bool	IndentJustAdded () const
	Was the indent just increased?
void	append (const TLString &str)
	Append string to the dump:.
StringTreeDump &	operator+= (const TLString &str)
	Append string to the dump:.
void	RemoveEnd (char c)
	Remove the passed character if that char is at the end of the dump:.
size_t	write (FILE *fp, int indent_size=4, char indent_char=' ')
	Write the complete string representation to a FILE *.
Private Member Functions
	StringTreeDump (const StringTreeDump &)
	Do not use:.
void	operator= (const StringTreeDump &)
	Do not use:.
Private Attributes
LinkedList< Entry >	ents
int	curr_indent
bool	indent_just_added

---

Detailed Description

Expandable, indent-capable, (alloc-ahead) string buffer for tree node dump.

Author:

Wolfgang Wieser ] wwieser (a) gmx <*> de [

This class can be used to get a string representation of a whole tree by simply adding string text for each node. Upon recursion, the indention counter can be increased and decreased when coming up again resulting in nice indented output.

This class is NOT C++-safe. NOTE: This class is not thread-safe. Only one thread may append strings at a time.

Definition at line 51 of file strtreedump.h.

---

Constructor & Destructor Documentation

StringTreeDump::StringTreeDump (  const StringTreeDump &   )  [private]

Do not use:.

StringTreeDump::StringTreeDump (   )

Create empty string tree dump. Definition at line 128 of file strtreedump.cc. References curr_indent, and indent_just_added.

StringTreeDump::~StringTreeDump (   )

Destroy thereby freeing data. Definition at line 135 of file strtreedump.cc. References ents, LinkedList< Entry >::IsEmpty(), and LinkedList< Entry >::PopLast().

---

Member Function Documentation

void StringTreeDump::AddIndent (  int  n = 1  )  [inline]

Change indent: Increase it by passed amount. Definition at line 106 of file strtreedump.h. References curr_indent, and indent_just_added. Referenced by VM::AssemblerFile_Plaintext::_WriteSymbols_Global(), VM::AssemblerFile_Plaintext::_WriteSymbols_Recursive(), VM::AssemblerFile_Plaintext::_WriteSymbolSectionContent(), VM::NamespaceInfo::DumpTree(), and VM::ClassInfo::DumpTree().

void StringTreeDump::append (  const TLString &  str  )

Append string to the dump:. Definition at line 36 of file strtreedump.cc. References StringTreeDump::Entry::append(), LinkedList< Entry >::append(), curr_indent, ents, StringTreeDump::Entry::indent, indent_just_added, LinkedList< Entry >::last(), StringTreeDump::Entry::str, and TLString::TightenSize(). Referenced by VM::VMLinker::LinkAll(), and operator+=().

bool StringTreeDump::IndentJustAdded (   )  const [inline]

Was the indent just increased? Definition at line 112 of file strtreedump.h. References indent_just_added.

StringTreeDump& StringTreeDump::operator+= (  const TLString &  str  )  [inline]

Append string to the dump:. Definition at line 117 of file strtreedump.h. References append().

void StringTreeDump::operator= (  const StringTreeDump &   )  [private]

Do not use:.

void StringTreeDump::RemoveEnd (  char  c  )

Remove the passed character if that char is at the end of the dump:. Definition at line 52 of file strtreedump.cc. References Assert, ents, LinkedList< Entry >::last(), and StringTreeDump::Entry::RemoveEnd().

void StringTreeDump::SubIndent (  int  n = 1  )  [inline]

Change indent: Decrease it by passed amount. Definition at line 109 of file strtreedump.h. References curr_indent. Referenced by VM::AssemblerFile_Plaintext::_WriteSymbols_Global(), VM::AssemblerFile_Plaintext::_WriteSymbols_Recursive(), VM::AssemblerFile_Plaintext::_WriteSymbolSectionContent(), VM::NamespaceInfo::DumpTree(), and VM::ClassInfo::DumpTree().

size_t StringTreeDump::write (  FILE *  fp, int  indent_size = 4, char  indent_char = ' ' )

Write the complete string representation to a FILE *. The indent_size is the number of indent_char's to be used for one level of indention. Returns number of bytes written. Definition at line 60 of file strtreedump.cc. References TLString::append(), Assert, ents, LinkedList< Entry >::first(), StringTreeDump::Entry::indent, TLString::length(), LinkedListBase< Entry >::next, TLString::str(), StringTreeDump::Entry::str, and TLString::trunc(). Referenced by VM::AssemblerFile_Plaintext::_WriteSymbolSectionContent(), and VM::VMLinker::LinkAll().

---

Member Data Documentation

int StringTreeDump::curr_indent [private]

Definition at line 92 of file strtreedump.h. Referenced by AddIndent(), append(), StringTreeDump(), and SubIndent().

LinkedList<Entry> StringTreeDump::ents [private]

Definition at line 91 of file strtreedump.h. Referenced by append(), RemoveEnd(), write(), and ~StringTreeDump().

bool StringTreeDump::indent_just_added [private]

Definition at line 93 of file strtreedump.h. Referenced by AddIndent(), append(), IndentJustAdded(), and StringTreeDump().

---

The documentation for this class was generated from the following files:

• /ray/src/lib/lex/strtreedump.h
• /ray/src/lib/lex/strtreedump.cc

---
