TLArray< T, _OP > Class Template Reference

Dynamic array template. More...

#include <tlarray.h>

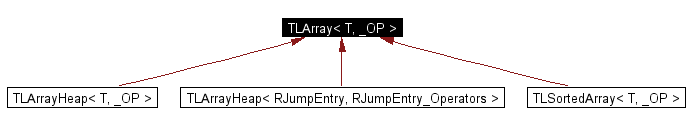

Inheritance diagram for TLArray< T, _OP >:

[legend]Collaboration diagram for TLArray< T, _OP >:

[legend]List of all members.

Public Member Functions
	TLArray (const _OP &op=_OP())
	Create empty array.
virtual	~TLArray ()
	Destroy array clearing it.
bool	IsEmpty () const
	Is the array empty? Runtime O(1).
size_t	NElem () const
	Get number of elements in array:.
T &	operator[] (size_t idx)
	Get element with passed index as reference.
const T &	operator[] (size_t idx) const
	See non-const version.
void	clear (bool keep_memory=0)
	Clear the whole array. Never free it if keep_memory is set.
int	insert (const T &e, size_t idx)
	Insert element into the array.
int	remove (size_t idx)
	Remove element with passed index.
int	assign (const T &e, size_t idx)
	Assign element with passed index.
template<typename K> ssize_t	LinSearch (const K &key, size_t sidx=0)
	Perform linear search in array.
template<typename K> ssize_t	BinSearch (const K &key)
	Perform binary search in array.
Public Attributes
_OP	OP
Protected Member Functions
T &	array (size_t idx)
	Use this for array subscript if you want a reference:.
T *	arrayP (size_t idx)
	Use this for array subscript if you want a pointer:.
virtual void	_realloc (size_t new_asize)
	Perform reallocation operation to change array size.
void	_free ()
	Free the array memory.
size_t	_get_downsize ()
	Get new size of array when shrinking the array.
void	_downsize ()
	Perform array shrinking if necessary.
void	_upsize1 ()
	Perform array growth by one element.
void	_clearall ()
	Clear all elements in the array using OP.clr().
Protected Attributes
size_t	asize
	Number of allocated array elements.
size_t	nelem
	Array size (number of elements).
char *	_array
	Array memory; use array(idx) for subscript.
Private Member Functions
	TLArray (const TLArray &)
	Do not use.
void	operator= (const TLArray &)
	Do not use.

---

Detailed Description

template<typename T, typename _OP = TLDefaultOperators_CDT<T>>
class TLArray< T, _OP >

Dynamic array template.

Author:

Wolfgang Wieser ] wwieser (a) gmx <*> de [

Implements dynamic array which automatically grows or shrinks.

This class can be used to implement array-based heaps and stacks but also directly for arrays.

Attention:

Be aware that the array internally uses one allocated memory chunk and hence needs to re-allocate in order to grow and shrink. This has 2 consequences:

• Do not use pointers to elements stored in the array across calls which may cause re-allocation. Use index values instead.
• Do not use TLArray-based implementations for highly dynamic things

WHAT TO USE FOR <T>: (Standard text from tlbtree.h:) This class is probably most useful for T being a simple type (integer, unique pointers to a class or small data-only structures). You may use any POD type or any struct/class which is a "plain data type" (PDT; see defop.h) and even for "complex data types" as long as you can provide the required operator plugin OP and it has a working default constructor and a working copy constructor (both for temporaries).

Thread safety: The complete must be protected by a mutex for all "write" operations.

This class is NOT "C++-safe", i.e. do not use the assignment operator or the copy constructor (these are private).

Definition at line 65 of file tlarray.h.

---

Constructor & Destructor Documentation

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> TLArray< T, _OP >::TLArray (  const TLArray< T, _OP > &   )  [private]

Do not use.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> TLArray< T, _OP >::TLArray (  const _OP &  op = _OP()  )  [inline]

Create empty array. Definition at line 131 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> virtual TLArray< T, _OP >::~TLArray (   )  [inline, virtual]

Destroy array clearing it. Definition at line 133 of file tlarray.h.

---

Member Function Documentation

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> void TLArray< T, _OP >::_clearall (   )  [inline, protected]

Clear all elements in the array using OP.clr(). Reimplemented in TLArrayHeap< T, _OP >, and TLArrayHeap< RJumpEntry, RJumpEntry_Operators >. Definition at line 118 of file tlarray.h. Referenced by TLArray< RJumpEntry, RJumpEntry_Operators >::clear(), and TLArray< RJumpEntry, RJumpEntry_Operators >::~TLArray().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> void TLArray< T, _OP >::_downsize (   )  [inline, protected]

Perform array shrinking if necessary. Definition at line 106 of file tlarray.h. Referenced by TLSortedArray< T, _OP >::remove(), and TLArray< RJumpEntry, RJumpEntry_Operators >::remove().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> void TLArray< T, _OP >::_free (   )  [inline, protected]

Free the array memory. Definition at line 93 of file tlarray.h. Referenced by TLArray< RJumpEntry, RJumpEntry_Operators >::clear(), TLArray< RJumpEntry, RJumpEntry_Operators >::~TLArray(), and TLArrayHeap< RJumpEntry, RJumpEntry_Operators >::~TLArrayHeap().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> size_t TLArray< T, _OP >::_get_downsize (   )  [inline, protected]

Get new size of array when shrinking the array. Definition at line 99 of file tlarray.h. Referenced by TLArray< RJumpEntry, RJumpEntry_Operators >::_downsize().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> virtual void TLArray< T, _OP >::_realloc (  size_t  new_asize  )  [inline, protected, virtual]

Perform reallocation operation to change array size. Reimplemented in TLArrayHeap< T, _OP >, and TLArrayHeap< RJumpEntry, RJumpEntry_Operators >. Definition at line 87 of file tlarray.h. Referenced by TLArray< RJumpEntry, RJumpEntry_Operators >::_downsize(), and TLArray< RJumpEntry, RJumpEntry_Operators >::_upsize1().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> void TLArray< T, _OP >::_upsize1 (   )  [inline, protected]

Perform array growth by one element. Definition at line 112 of file tlarray.h. Referenced by TLArrayHeap< RJumpEntry, RJumpEntry_Operators >::insert(), and TLArray< RJumpEntry, RJumpEntry_Operators >::insert().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> T& TLArray< T, _OP >::array (  size_t  idx  )  [inline, protected]

Use this for array subscript if you want a reference:. Definition at line 80 of file tlarray.h. Referenced by TLArray< RJumpEntry, RJumpEntry_Operators >::assign(), TLSortedArray< T, _OP >::CheckOrder(), TLSortedArray< T, _OP >::GetInsertIdx(), TLArrayHeap< RJumpEntry, RJumpEntry_Operators >::heap(), TLArray< RJumpEntry, RJumpEntry_Operators >::insert(), TLArray< RJumpEntry, RJumpEntry_Operators >::LinSearch(), TLArray< RJumpEntry, RJumpEntry_Operators >::operator[](), TLSortedArray< T, _OP >::remove(), TLArray< RJumpEntry, RJumpEntry_Operators >::remove(), and TLSortedArray< T, _OP >::ReOrder().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> T* TLArray< T, _OP >::arrayP (  size_t  idx  )  [inline, protected]

Use this for array subscript if you want a pointer:. Definition at line 83 of file tlarray.h. Referenced by TLArray< RJumpEntry, RJumpEntry_Operators >::_clearall(), TLArrayHeap< RJumpEntry, RJumpEntry_Operators >::heapP(), TLArray< RJumpEntry, RJumpEntry_Operators >::insert(), TLSortedArray< T, _OP >::last(), TLSortedArray< T, _OP >::remove(), and TLArray< RJumpEntry, RJumpEntry_Operators >::remove().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> int TLArray< T, _OP >::assign (  const T &  e, size_t  idx )  [inline]

Assign element with passed index. This will overwrite the element [idx] with a new value as passed in e. Runtime is O(1). Returns: 0 on success, -2 if the index is out of range. Definition at line 212 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> template<typename K> ssize_t TLArray< T, _OP >::BinSearch (  const K &  key  )  [inline]

Perform binary search in array. Binary search can only be used if the array is sorted ascentingly. Runtime is O(log(n)). Returns: index of the first occurance or -1 if not found. Definition at line 240 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> void TLArray< T, _OP >::clear (  bool  keep_memory = 0  )  [inline]

Clear the whole array. Never free it if keep_memory is set. Reimplemented in TLArrayHeap< T, _OP >, and TLArrayHeap< RJumpEntry, RJumpEntry_Operators >. Definition at line 161 of file tlarray.h. Referenced by TLArrayHeap< RJumpEntry, RJumpEntry_Operators >::clear().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> int TLArray< T, _OP >::insert (  const T &  e, size_t  idx )  [inline]

Insert element into the array. Insert element e before index idx in the array. After the operation, e will be stored in [idx] and all following elements were moved up by one index. Runtime is O(n). Returns: 0 on success, -2 if the index is out of range. Definition at line 175 of file tlarray.h. Referenced by TLSortedArray< T, _OP >::insert().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> bool TLArray< T, _OP >::IsEmpty (   )  const [inline]

Is the array empty? Runtime O(1). Definition at line 137 of file tlarray.h. Referenced by VM::AssemblerFile_Plaintext::_WriteFunctionProgram().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> template<typename K> ssize_t TLArray< T, _OP >::LinSearch (  const K &  key, size_t  sidx = 0 )  [inline]

Perform linear search in array. Search starts at index sidx (default: 0). Runtime is O(n-sidx). Returns: index of the first occurance or -1 if not found. Definition at line 224 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> size_t TLArray< T, _OP >::NElem (   )  const [inline]

Get number of elements in array:. Definition at line 141 of file tlarray.h. Referenced by VM::AssemblerFile_Plaintext::_WriteFunctionProgram(), and main().

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> void TLArray< T, _OP >::operator= (  const TLArray< T, _OP > &   )  [private]

Do not use.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> const T& TLArray< T, _OP >::operator[] (  size_t  idx  )  const [inline]

See non-const version. Reimplemented in TLArrayHeap< T, _OP >, and TLArrayHeap< RJumpEntry, RJumpEntry_Operators >. Definition at line 157 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> T& TLArray< T, _OP >::operator[] (  size_t  idx  )  [inline]

Get element with passed index as reference. NO RANGE CHECK! Range: 0..NElem()-1. Runtime is O(1). Note: Probably only useful if you need to iterate through the elements or obtained an index via some function. Reimplemented in TLArrayHeap< T, _OP >, and TLArrayHeap< RJumpEntry, RJumpEntry_Operators >. Definition at line 154 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> int TLArray< T, _OP >::remove (  size_t  idx  )  [inline]

Remove element with passed index. This will remove the element [idx] and move all elements with higher indeces one down. Runtime is O(n). Returns: 0 on success, -2 if the index is out of range. Definition at line 195 of file tlarray.h.

---

Member Data Documentation

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> char* TLArray< T, _OP >::_array [protected]

Array memory; use array(idx) for subscript. Definition at line 71 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> size_t TLArray< T, _OP >::asize [protected]

Number of allocated array elements. Definition at line 69 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> size_t TLArray< T, _OP >::nelem [protected]

Array size (number of elements). Definition at line 70 of file tlarray.h.

template<typename T, typename _OP = TLDefaultOperators_CDT<T>> _OP TLArray< T, _OP >::OP

These are the operators... normally, the default OPs will not occupy any place (i.e. 1byte compiler dummy or so). Definition at line 76 of file tlarray.h. Referenced by main().

---

The documentation for this class was generated from the following file:

• /ray/src/lib/tl/tlarray.h

---
